SPARTUS Pro TIG220P AC/DC. Modern, digitally controlled inverter welder, constructed on the basis of IGBTs. Allows welding TIG AC/DC and MMA AC/DC modes. It is powered with single-phase 230V source power.
DESCRIPTION
For right welding methods, the welding current range is between: 5-200 (AC mode) and 5-170A (DC mode). Allows TIG welding with pulse mode, making it an ideal device for welding stainless and acid resistant steels. TIG AC welding mode, with ability to choose AC wave forms, AC balance and AC frequency, allows you to weld even the most demanding of aluminum alloys.
What impresses: small dimensions, lightweight (only 10,5 kg) and excellent output parameters. It is a device designed for both the manufacturing sector, as well as maintenance and montage.

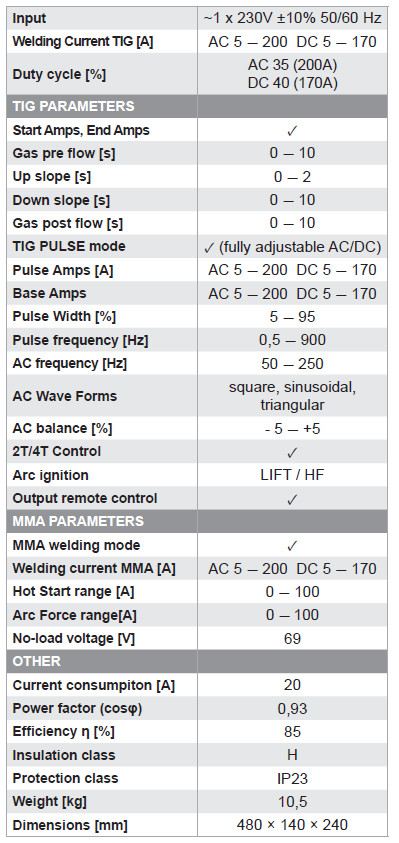

TECHNICAL PARAMETERS:

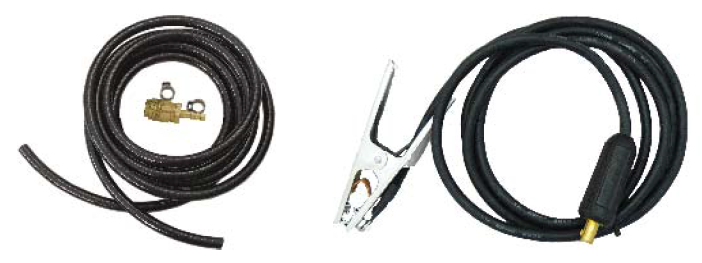

STANDART EQUIPMENT:
• 3 meter electrode holder
• 3 meter work clamp
• Gas hose
• Gas regulator SPARTUS Ar/CO2 with fl owmeter
• TIG torch SPARTUS Pro 26 4m
• User’s manual
| Set: | Pakiet MINI 17/4 m |
| Supply voltage: | ~1× 230V ± 10% 50 / 60 Hz |
| Welding current: | TIG AC/DC 5-200 A ,
MMA 5-200 A |
| Szerokość impulsu : | 5-95 % |
| Duty cycle: | AC/DC 200 A / 60% ,
MMA 200 A / 60% |
| Częstotliwość pulsu: | 0,5-999 Hz |
| Dimensions: | 480 × 140 × 240 (mm) |
| Weight: | 10,5 kg |
