OP 76 is an agglomerated, fluoride-basic type flux for welding stainless and heat-resistant steels. The flux is also suitable for welding Duplex and fully austenitic steels and nickel alloys. In terms of weld metal carbon content, the behaviour of OP 76 can be described as neutral, so that low carbon steels can be welded if suitable wires are used.
In terms of silicon and manganese, the metallurgical behaviour is neutral. The flux is highly basic and therefore features a high resistance to hot-cracking. Thus it is particularly well suited for joint welding large cross-sections. Good slag detachability when used with titanium and niobium free wire electrodes. Damp flux should be re-dried at 300-350°C. Grain size in accordance with EN 760: 2-20.

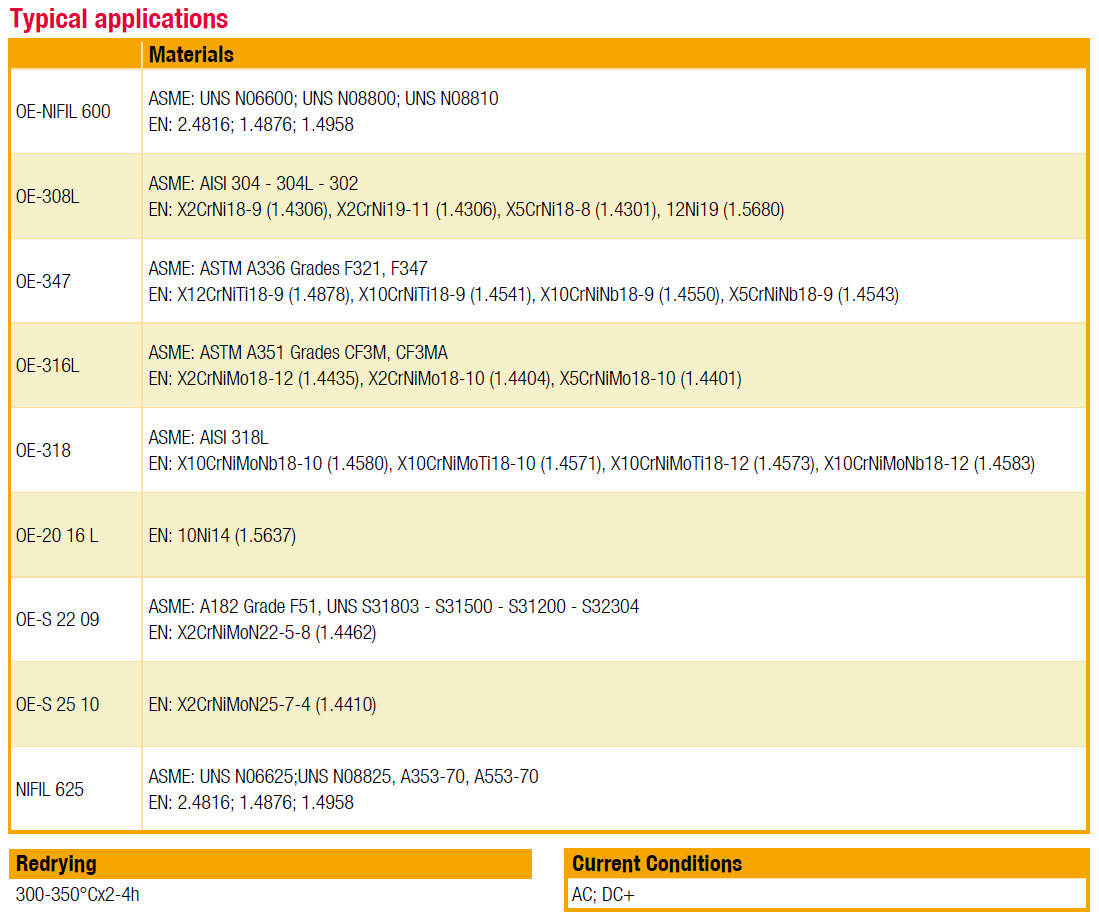

Materials:
- OE-308L ASME: AISI 304 - 304L - 302
- EN: X2CrNi18-9 (1.4306), X2CrNi19-11 (1.4306), X5CrNi18-8 (1.4301), 12Ni19 (1.5680)
- OE-347 ASME: ASTM A336 gatunki F321, F347
- EN: X12CrNiTi18-9 (1.4878), X10CrNiTi18-9 (1.4541), X10CrNiNb18-9 (1.4550), X5CrNiNb18-9 (1.4543)
- OE-316L ASME: ASTM A351 gatunki CF3M, CF3MA
- EN: X2CrNiMo18-12 (1.4435), X2CrNiMo18-10 (1.4404), X5CrNiMo18-10 (1.4401)
- OE-318 ASME: AISI 318L EN: X10CrNiMoNb18-10 (1.4580), X10CrNiMoTi18-10 (1.4571), X10CrNiMoTi18-12 (1.4573), X10CrNiMoNb18-12 (1.4583)
- OE-20 16 L EN: 10Ni14 (1.5637)
- OE-S 22 09 ASME: A182 gatunki F51, UNS S31803 - S31500 - S31200 - S32304
- EN: X2CrNiMoN22-5-8 (1.4462)
- OE-S 25 10 EN: X2CrNiMoN25-7-4 (1.4410)
- NIFIL 600 ASME: UNS N06600; UNS N08800; UNS N08810 EN: 2.4816; 1.4876; 1.4958
- NIFIL 625 ASME: UNS N06625;UNS N08825, A353-70, A553-70 EN: 2.4816; 1.4876; 1.4958
