OP 192 is an agglomerated aluminate-basic type flux for the welding of general structural steels, boiler and pipe steels, as well as fine-grain structural steels. The welding flux produces a medium silicon and manganese pick-up and is therefore used in combination with the wire electrodes OE-S2 and OE-S2 Mo.
OP 192 is suitable for twin-wire, tandem and multi-wire welding using the single layer or multi-layer techniques. For higher level of toughness, it an OE-S2 Mo wire electrode is recommended when welding from both sides in one pass or when welding one-sided with the single layer technique. The finely rippled bead surface and the good slag detachability make OP 192 perfectly suited for fillet welds. It can be welded on DC and AC up to 1000 A with the single-wire
technique.
Damp flux should be re-dried at 300-350°C.
Grain size according to EN 760: 2-20.

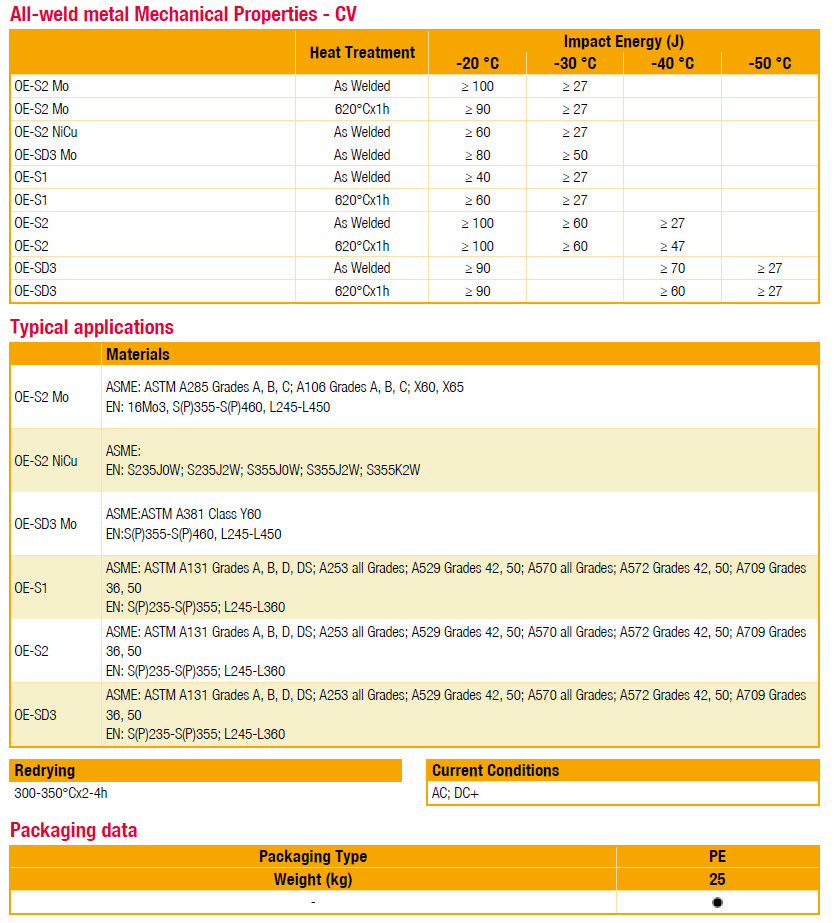

Materials:
- OE-S1 ASME: ASTM A131 gatunki A, B, D, DS; A253 wszystkie gatunki; A529 gatunki 42, 50; A570 wszystkie gatunki; A572 gatunki 42, 50; A709 gatunki 36, 50 EN: S(P)235-S(P)355; L245-L360.
- OE-S2 ASME: ASTM A131 gatunki A, B, D, DS; A253 wszystkie gatunki; A529 gatunki 42, 50; A570 wszystkie gatunki; A572 gatunki 42, 50; A709 gatunki 36, 50 EN: S(P)235-S(P)355; L245-L360.
- OE-SD3 ASME: ASTM A131 gatunki A, B, D, DS; A253 wszystkie gatunki; A529 gatunki 42, 50; A570 wszystkie gatunki; A572 gatunki 42, 50; A709 gatunki 36, 50 EN: S(P)235-S(P)355; L245-L360 OE-S2Mo
- ASME: ASTM A285 gatunki A, B, C; A106 gatunki A, B, C; X60, X65 EN: 16Mo3, S(P)355-S(P)460, L245-L450
- OE-SD3 Mo ASME:ASTM A381 klasa Y60 EN:S(P)355-S(P)460, L245-L450 OE-S2NiCu ASME: EN: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W
